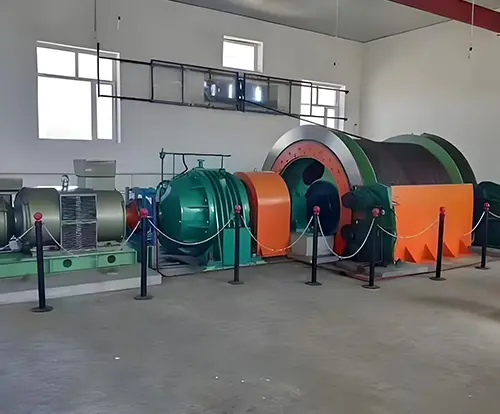

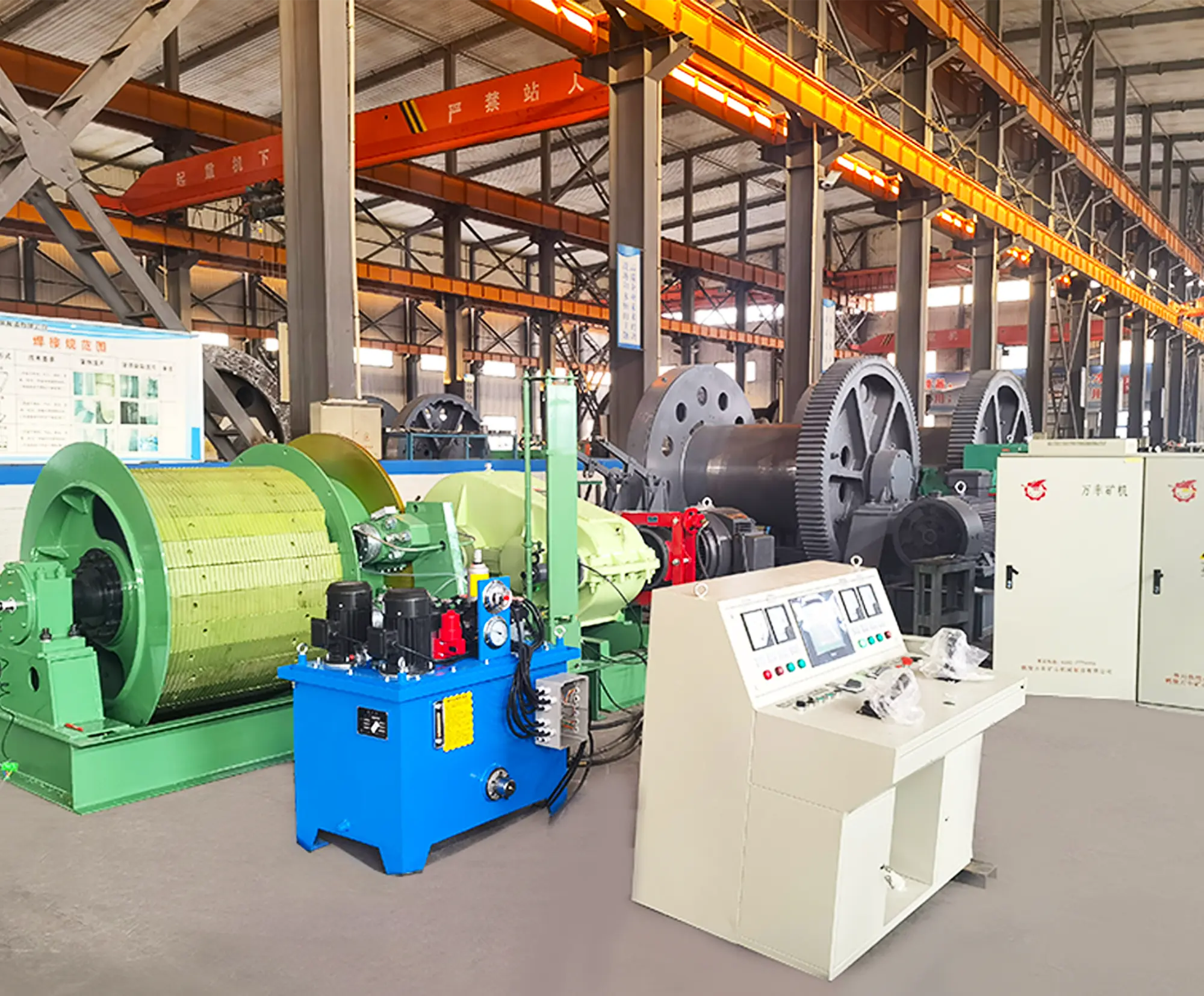

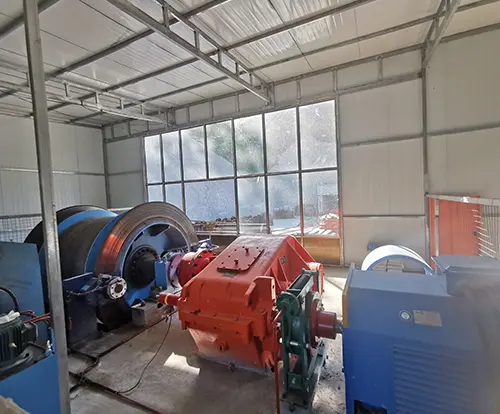

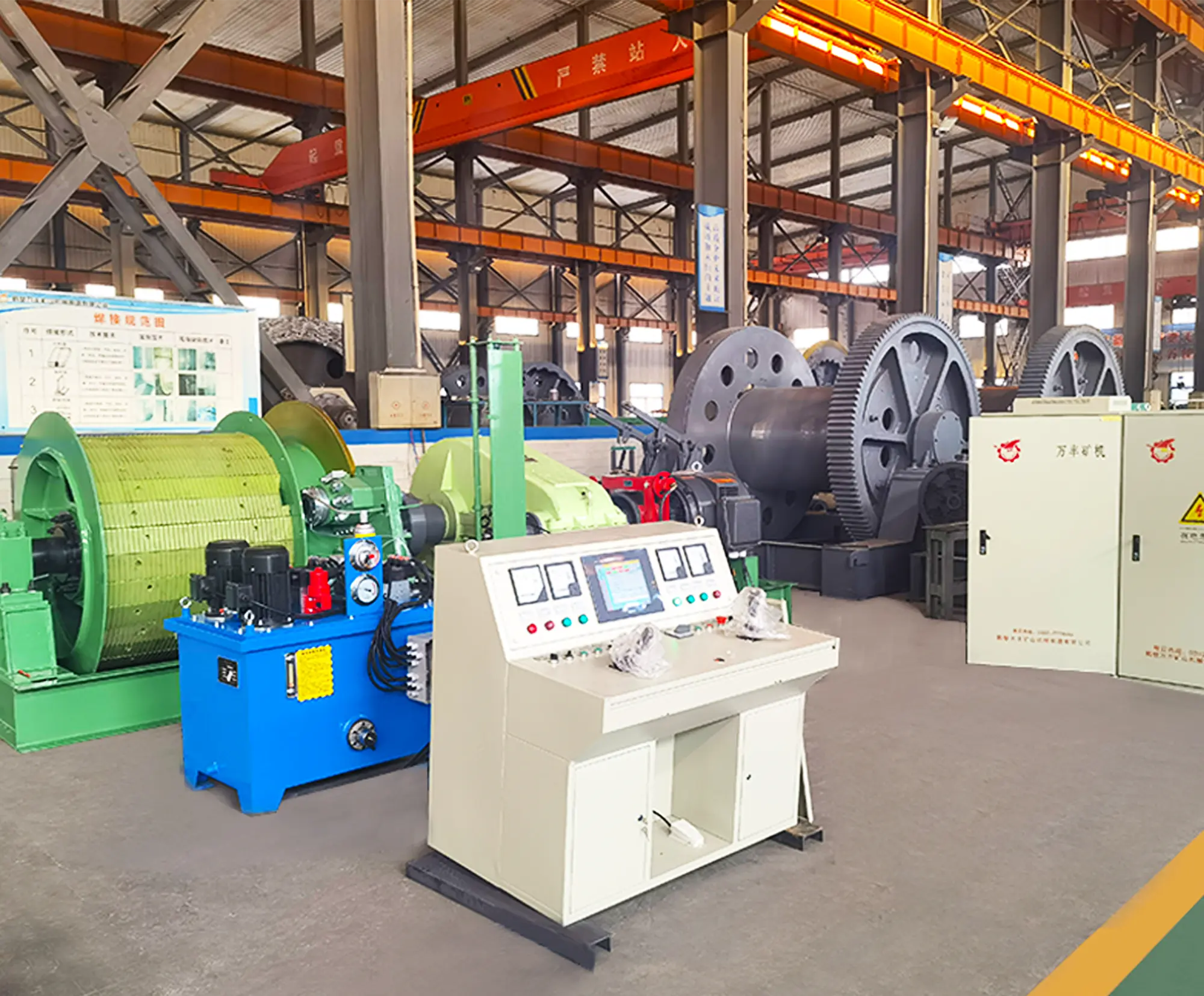

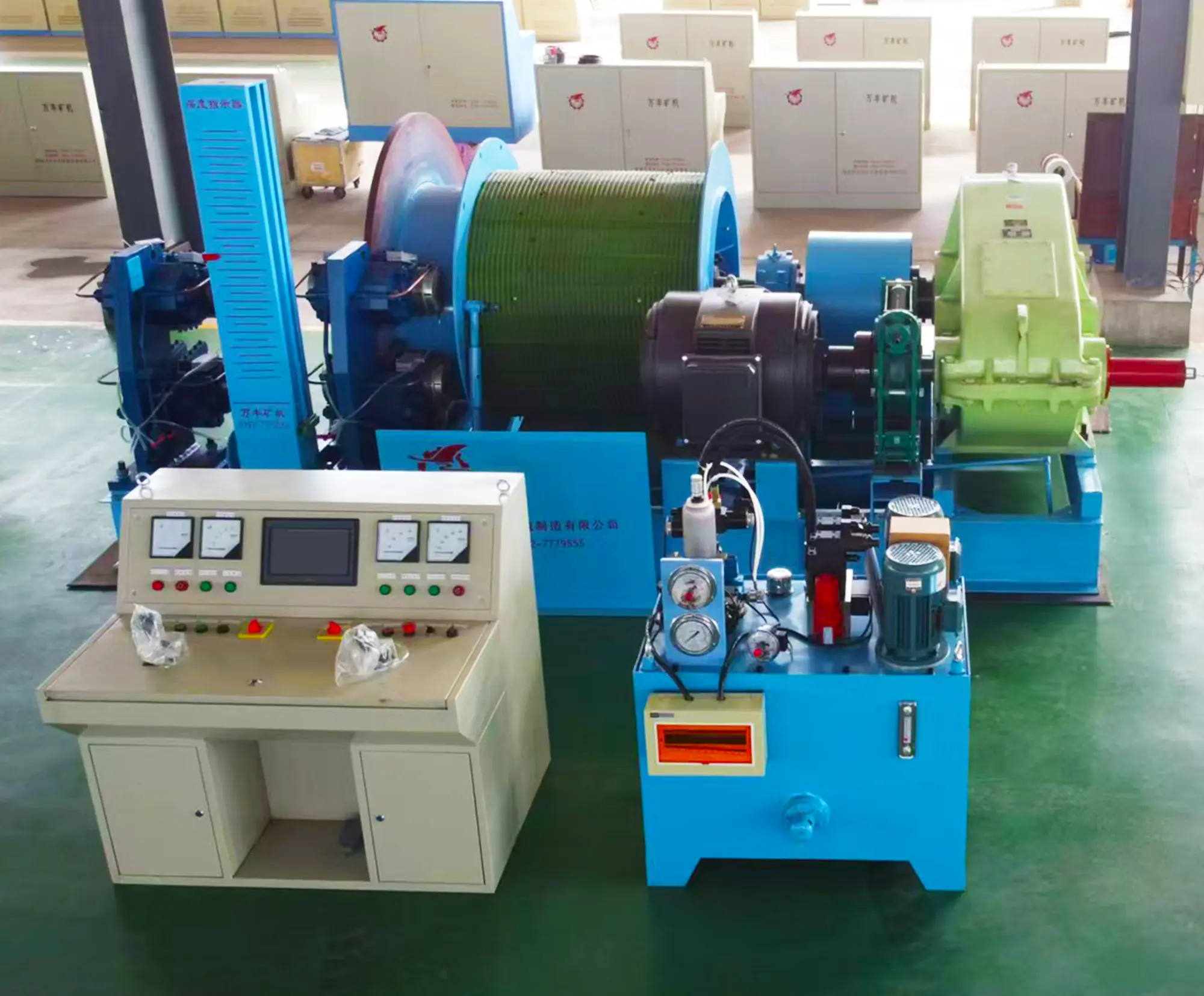

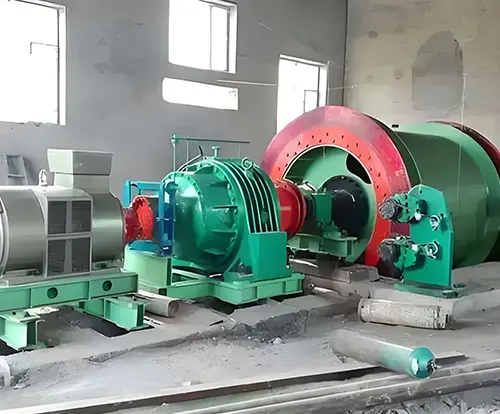

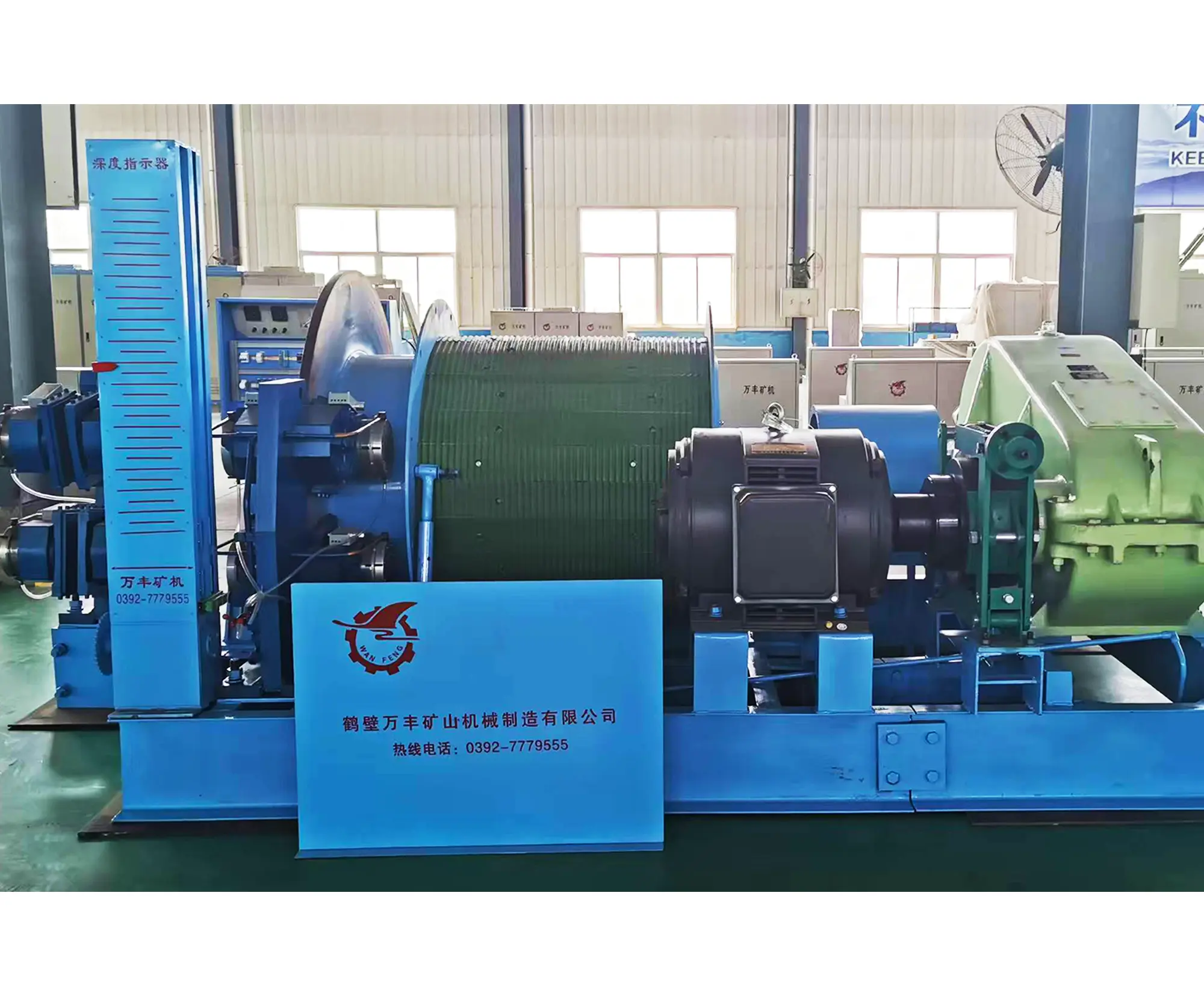

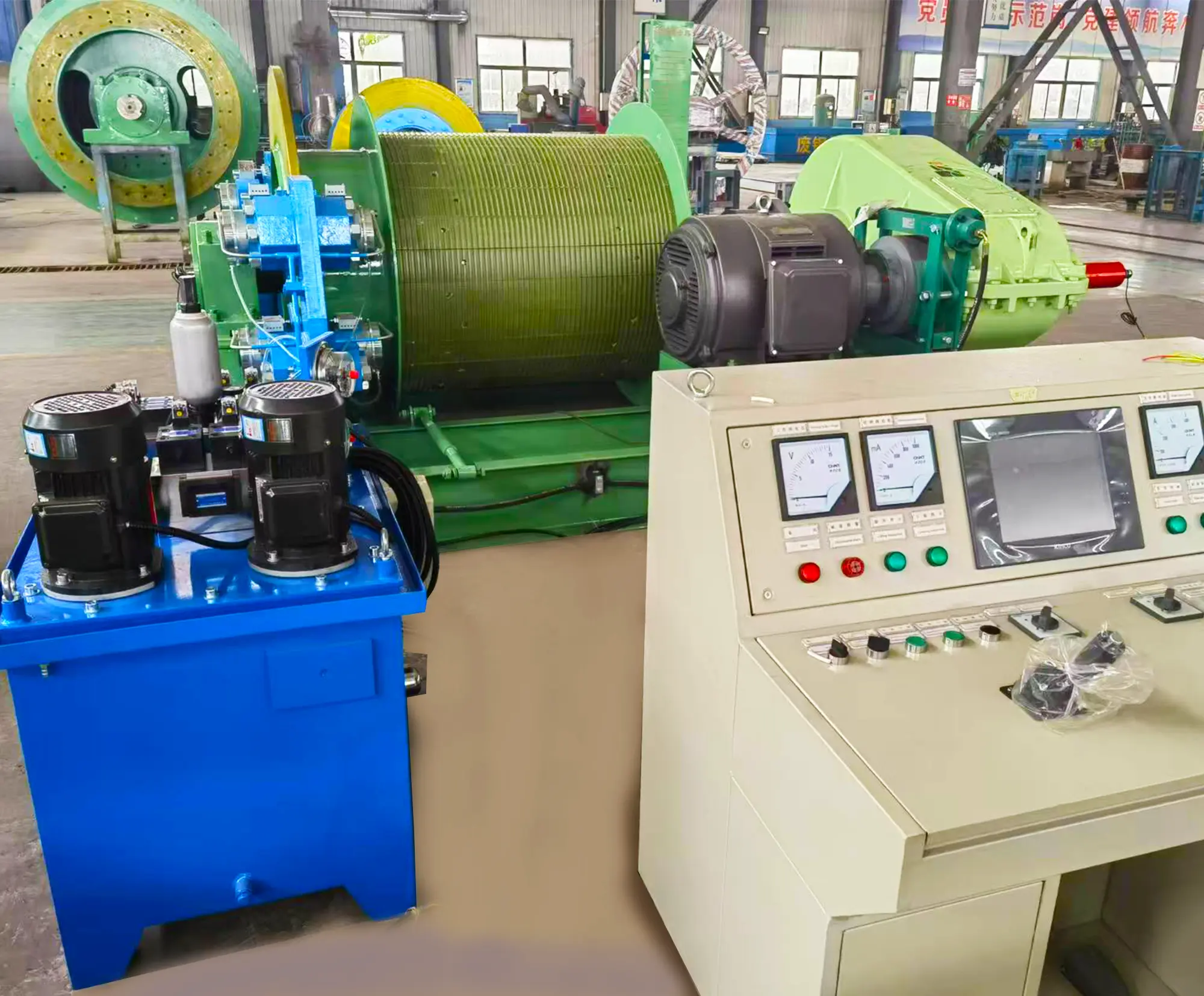

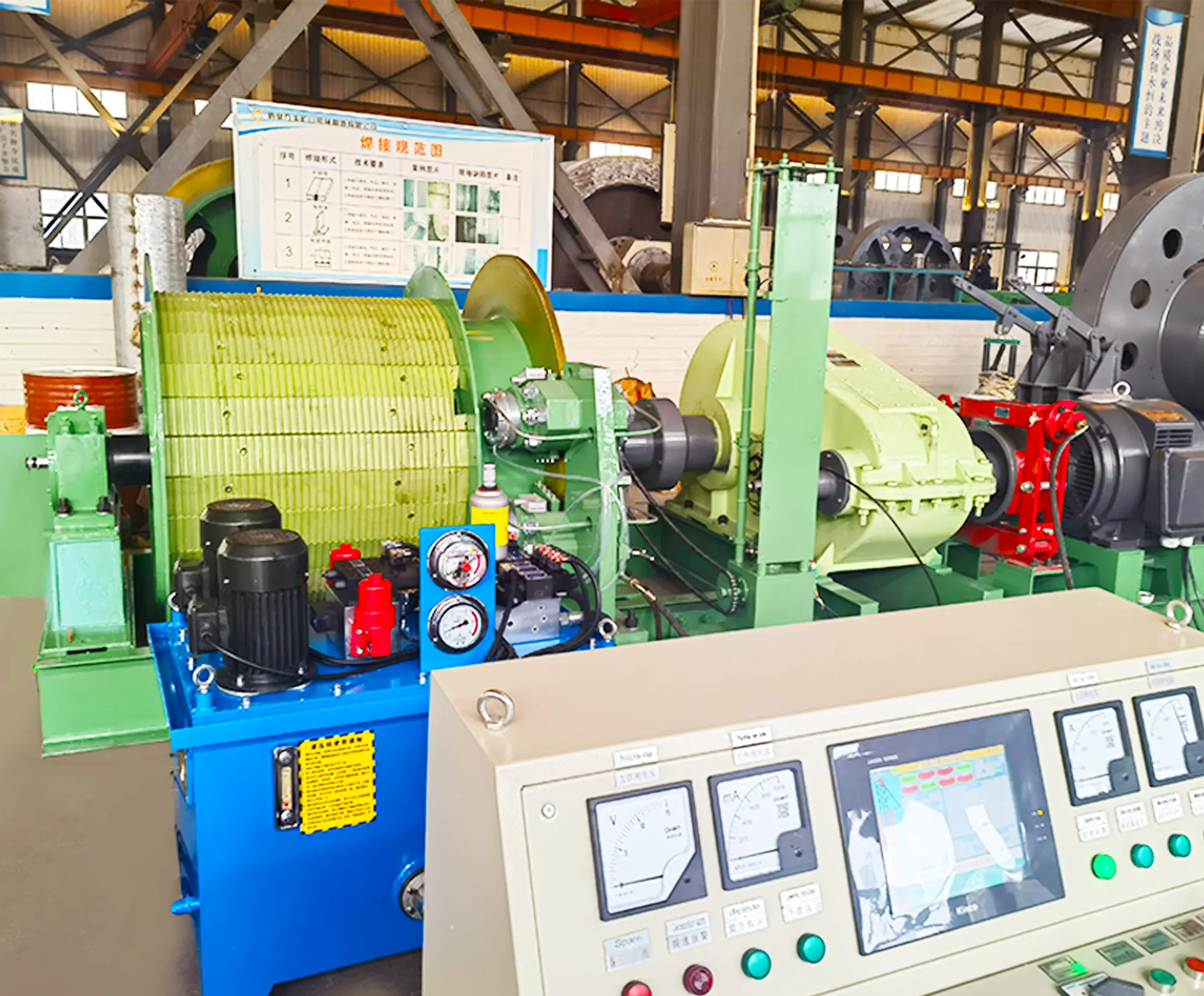

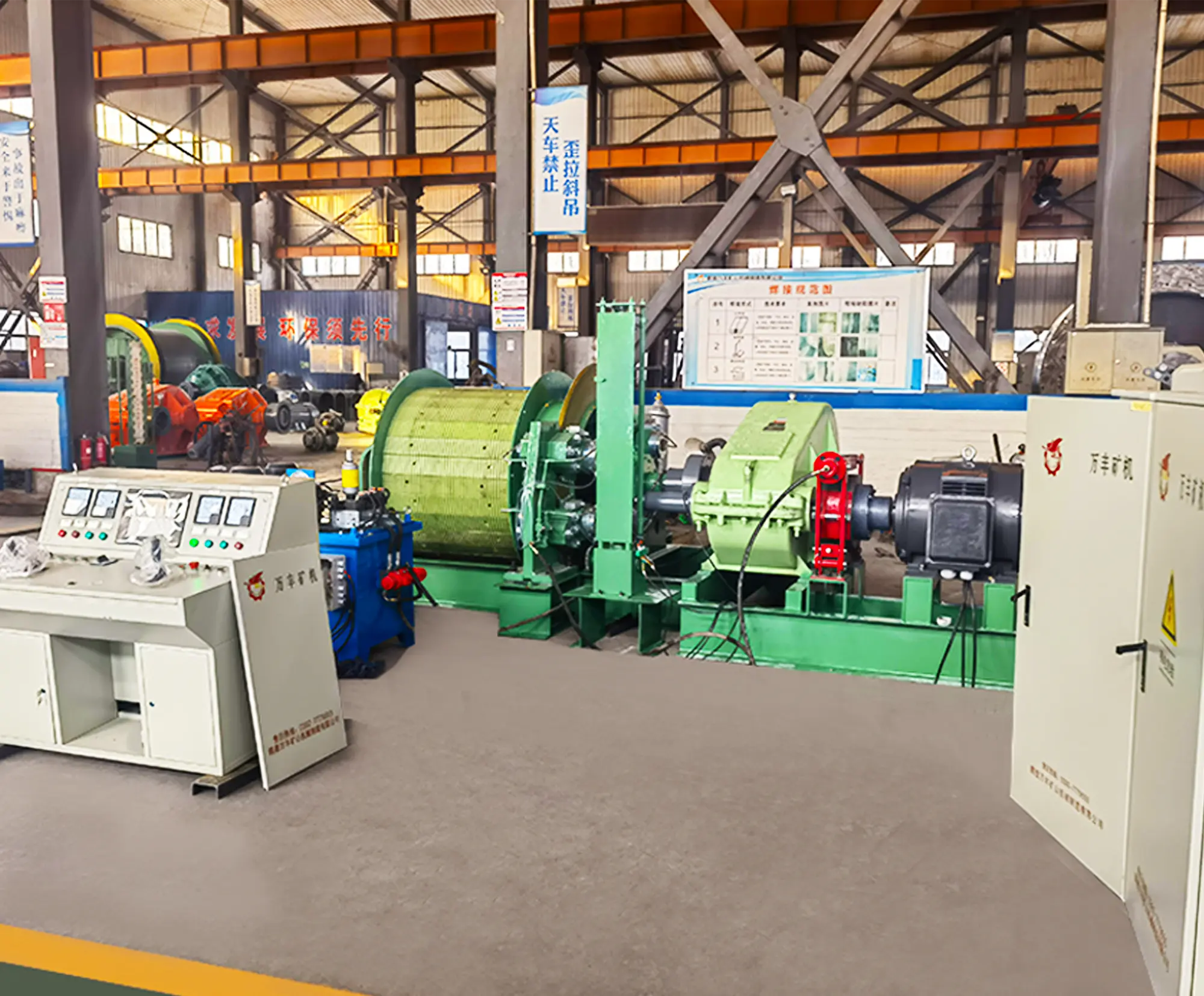

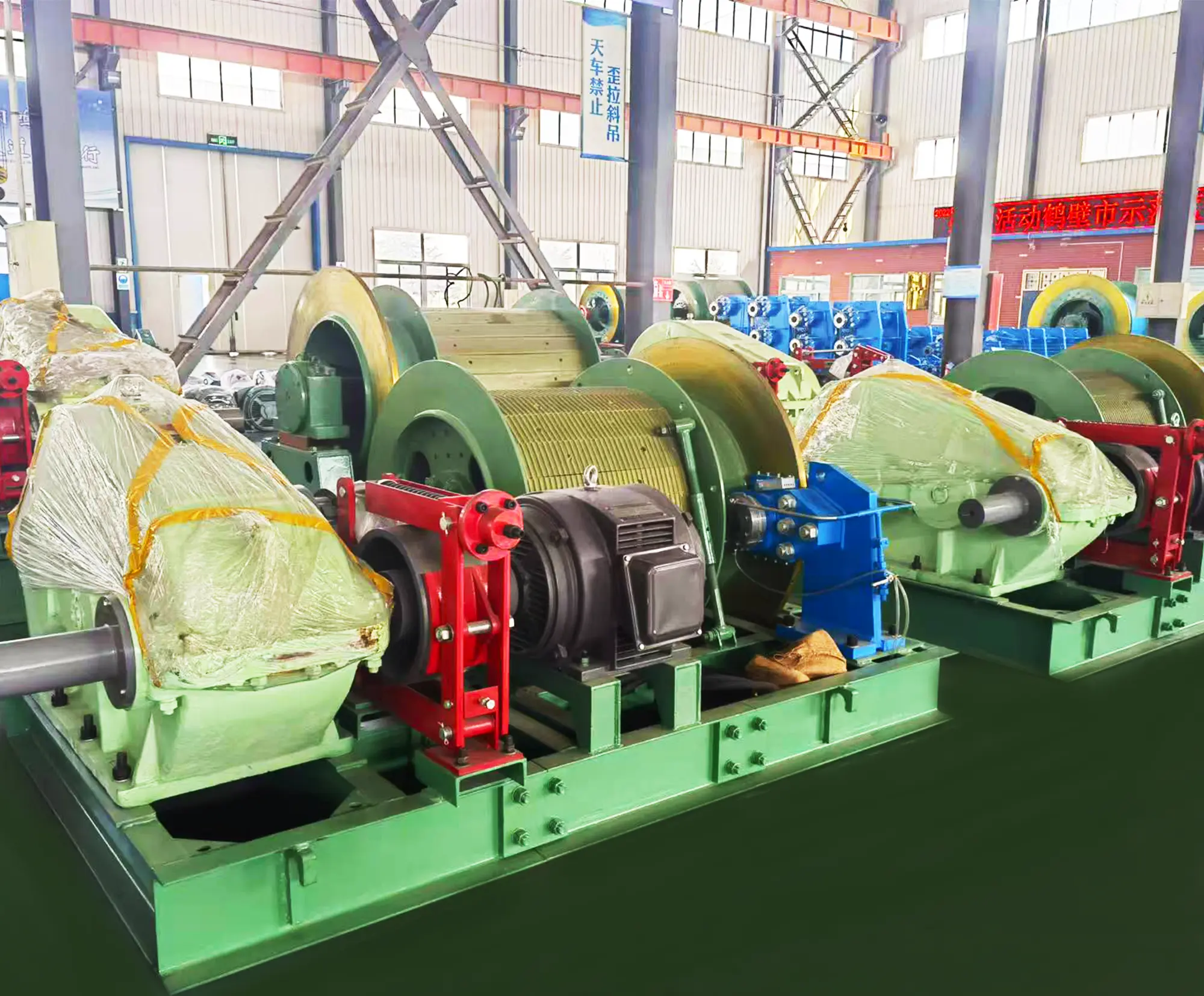

JTP series mining hoist winch
JTP series mining hoist winch
JTP series mining hoist winch
JTP series mining hoist winch
JTP series mining hoist winch

JTP series mining hoist winch

When the main motor is started, the power is transmitted from the motor rotor to the high-speed shaft of the reducer through the elastic coupling. After being decelerated by the transmission of the reducer, it is then transmitted from the driven shaft of the reducer to the main shaft device through the gear coupling.

Send Message
FacebookTwitterLinkedInPinterestShare

Product Introduction

When the main motor is started, the power is transmitted from the motor rotor to the high-speed shaft of the reducer through the elastic coupling. After being decelerated by the transmission of the reducer, it is then transmitted from the driven shaft of the reducer to the main shaft device through the gear coupling. If the rotation direction of the motor is continuously changed, the drum can wind or release the steel wire rope, enabling the hoisting container to make periodic up-and-down reciprocating movements in the shaft.

Purpose and Application Scope of the Product

The JTP and 2JTP series of mine hoist winches are mainly used in the inclined roadways or small vertical shafts of coal mines, metal mines, and non-metal mines to hoist materials or personnel.

Product Execution Standards

The JTP and 2JTP series of products are designed and manufactured in accordance with AQ1033-2007 "Safety Inspection Specification for JTP Type Mine Hoist Winches for Coal Mines", JB/T7888-2010 "JTP Type Mine Hoist Winches" industry standards, Q/YX005-2020 "JTP Type Mine Hoist Winches", the "Coal Mine Safety Regulations", and GB16423-2020 "Safety Regulations for Metal and Non-Metal Mines".

JTP/JTPB/2JTP/2JTPB Type Mining Winch Parameters
Model Reel The maxmumstatic tension ofthe wire rope Largest static
tension difference of wire rope		 Maximum lifting height orlength of transport Wire rope Reduction ratio Average hoistingspeed Motor Dimensiong Length×width×height Theoretical Weight of host
Individual Diameter Width Two drum
central
distance		 Manned Load Manned Load one layer
of
winding		 two layer
of
winding		 three layer
of
winding		 Largest
 diameter		 Sum of breaking pull force Rotating speed Maximum power
Unit  mm kn mm mm kn m/s r/min kw mm kg
JTP-1*0.8P 1 1000 800 / 15 / 179 360 543 12 97.5 31.5 1.6 985 37 3800*2380*1350 3430
JTP-1.2*1P 1 1200 1200 / 30 30 169 341 516 20 279 31.5 1.9 985 75 4458*2680*1450 9627
JTP-1.2*1.2P 1 1200 1200 / 15 21 / 205 413 625 20 279 31.5 1.9 967 55 4949*2680*2600 9711.2
JTP-1.6*1.2P 1 1600 1200 / 45 45 215 433 655 26 405 31.5 2.6 988 132 5224*2800*1925 14037
JTP-1.6*1.5P 1 1600 1500 / 45 / 269 542 819 26 405 31.5 2.5 975 110 5780*2800*1950 14200
JTPB-1.2*1P 1 1200 1000 / 30 30 169 341 516 20 279 31.5 1.9 967 75 4658*2680*1450 9940
JTPB-1.2*1.2P 1 1200 1200 / 30 30 205 413 625 20 279 31.5 1.9 967 75 4658*2680*1450 10421
JTPB-1.6*1.2P 1 1600 1200 / 45 45 215 433 655 26 405 31.5 2.6 975 132 5524*2800*1925 15195
JTPB-1.6*1.5P 1 1600 1500 / 45 45 269 542 819 26 405 31.5 2.6 975 132 5524*2800*1925 15678
2JTP-1.2*0.8P 2 1200 800 874 30 20 137 275 415 20 279 31.5 1.9 987 55 5136*2680*1450 10386
2JTP-1.2*1P 2 1200 1000 1070 15 21 15 21 169 341 516 20 279 31.5 1.9 967 55 5757*2680*1450 10027.2
2JTP-1.6*0.9P 2 1600 900 974 45 30 161 324 490 26 405 31.5 2.5 972 110 5905*2800*1925 16606.7
2JTP-1.6*1.2P 2 1600 1200 1270 45 30 215 433 655 26 405 31.5 2.5 975 110 6768*2800*1950 15330
2JTPB-1.2*0.8P 2 1600 800 874 30 20 137 275 415 20 279 31.5 1.9 967 55 5136*2680*1450 11520
2JTPB-1.6*0.9P 2 1600 900 947 45 30 161 324 490 26 405 31.5 2.6 988 110 5905*2800*1925 14200
