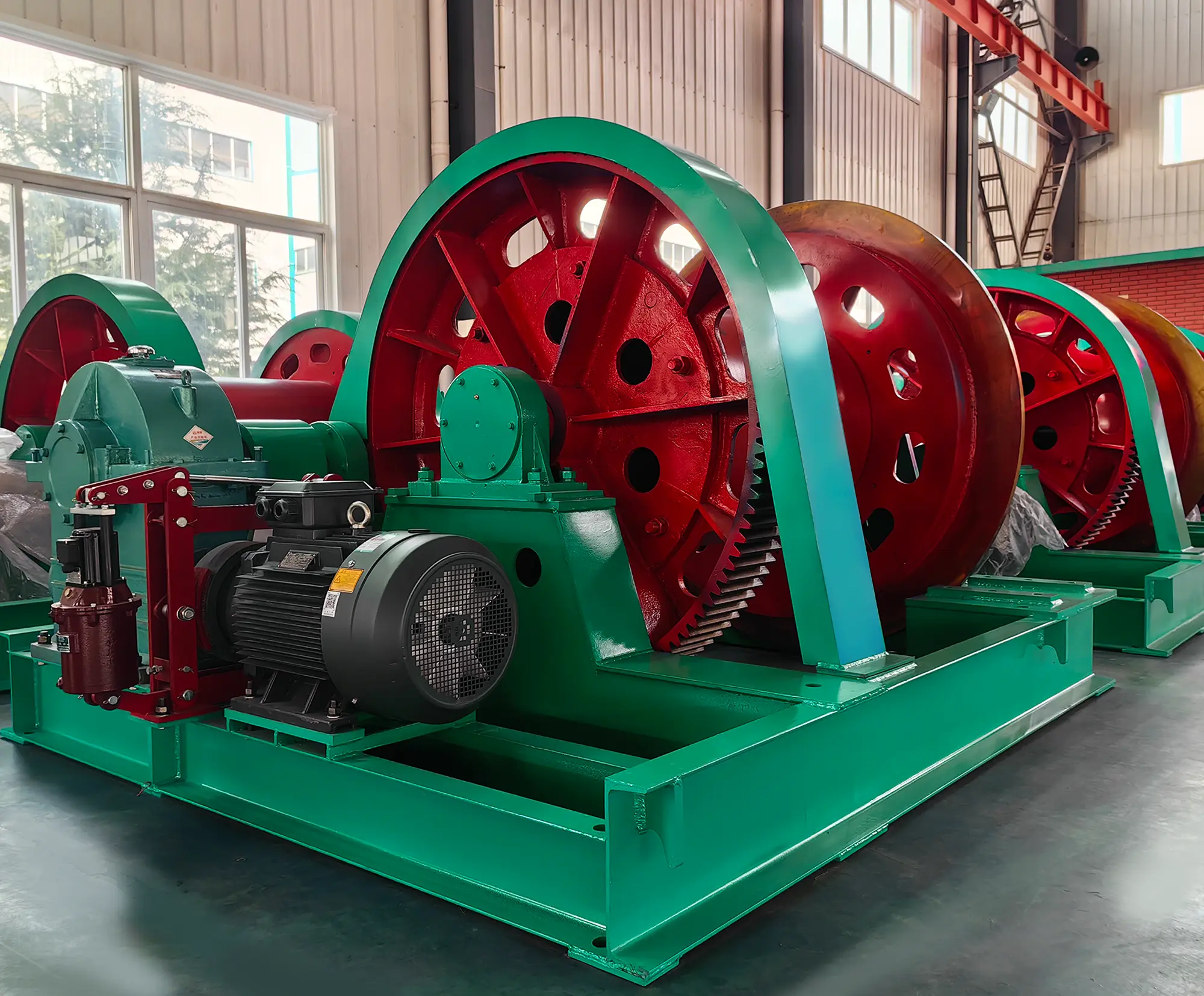

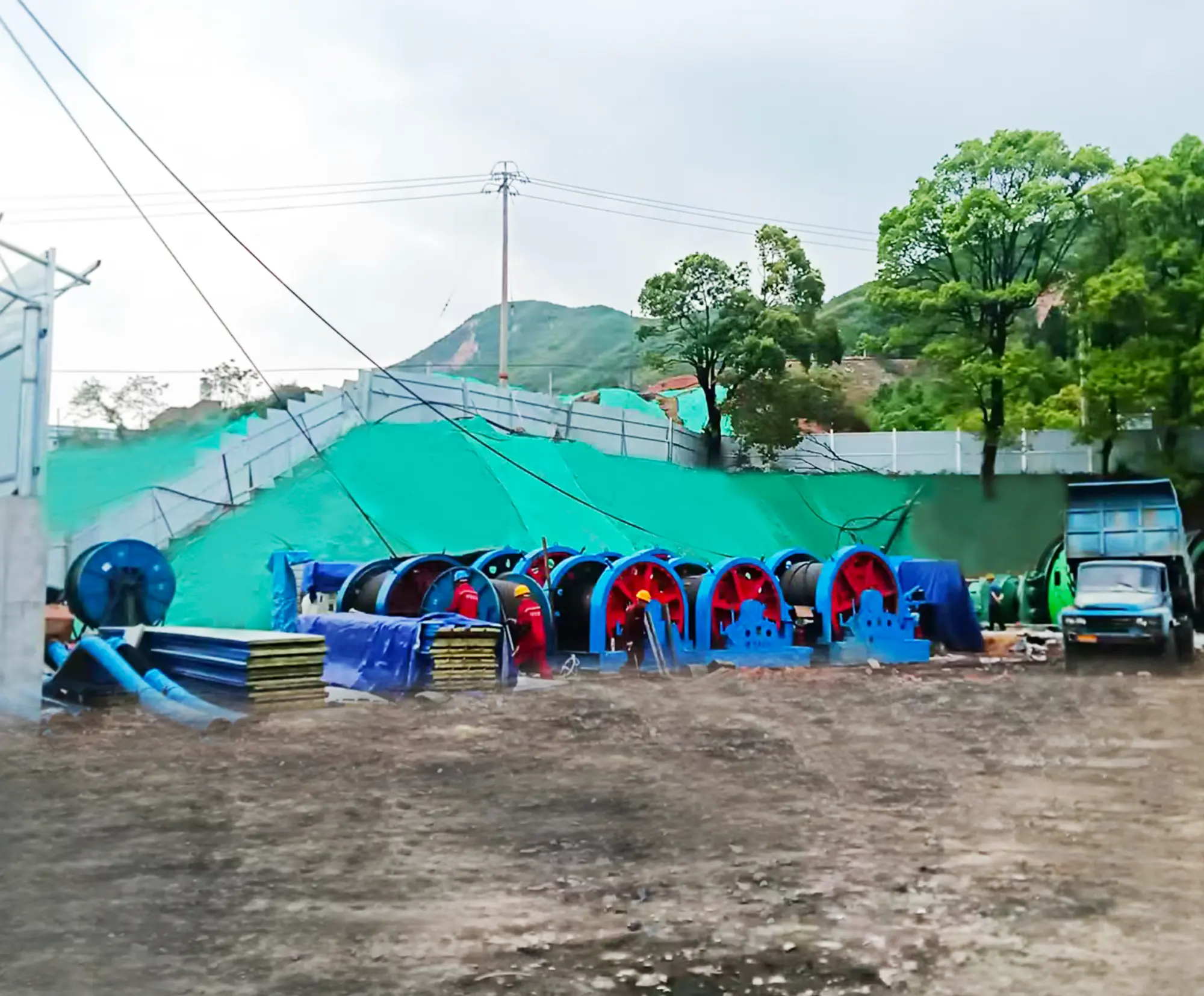

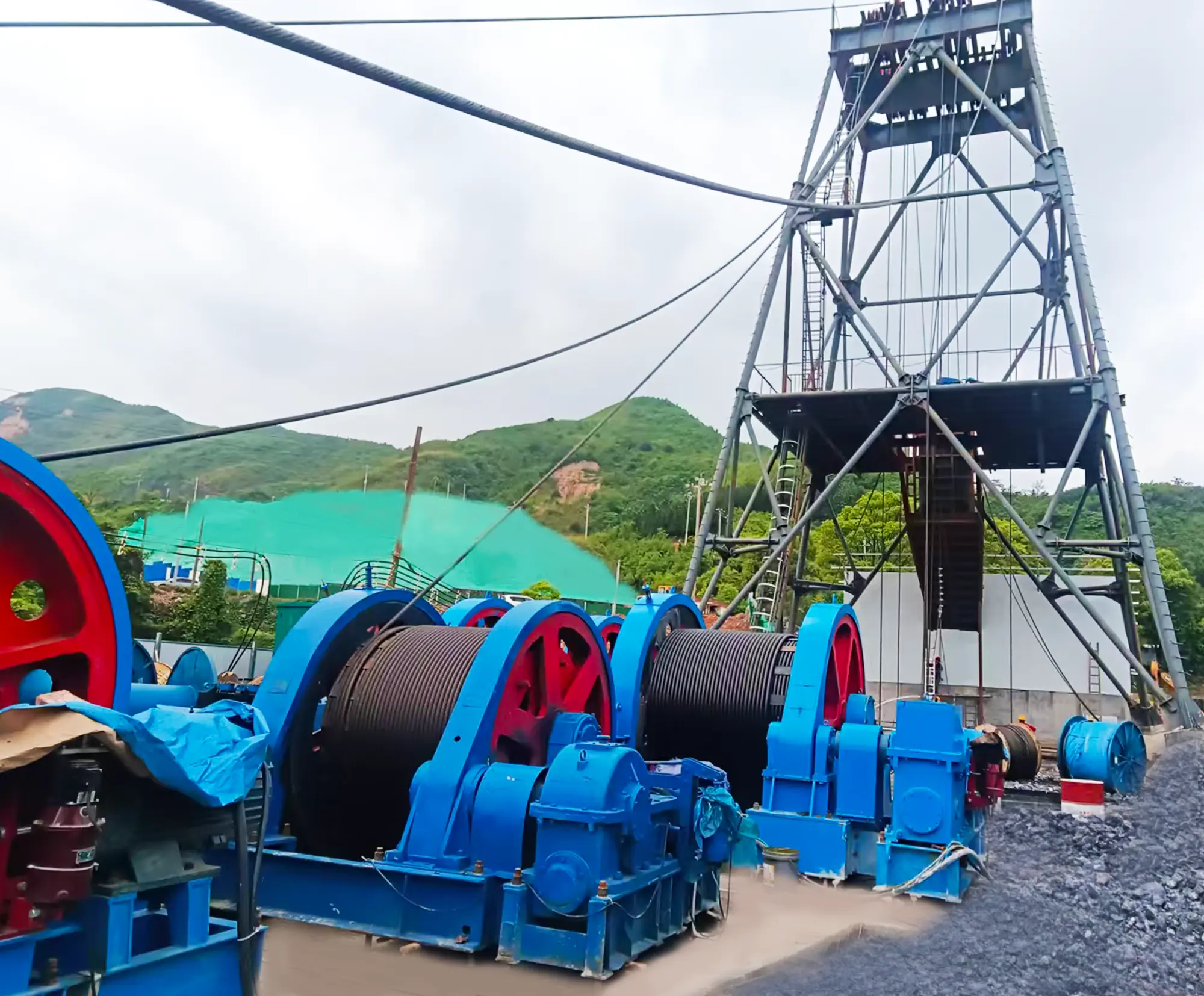

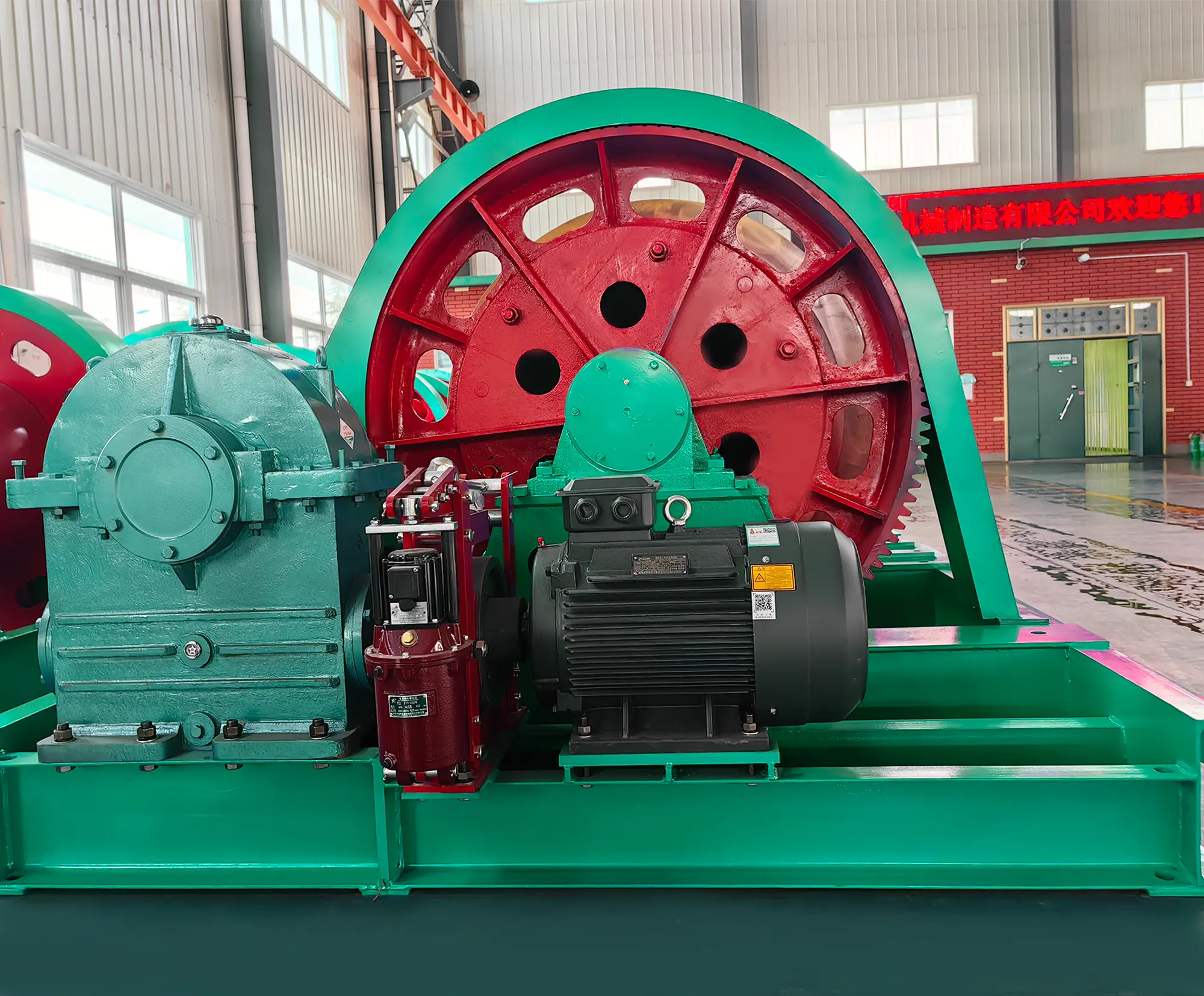

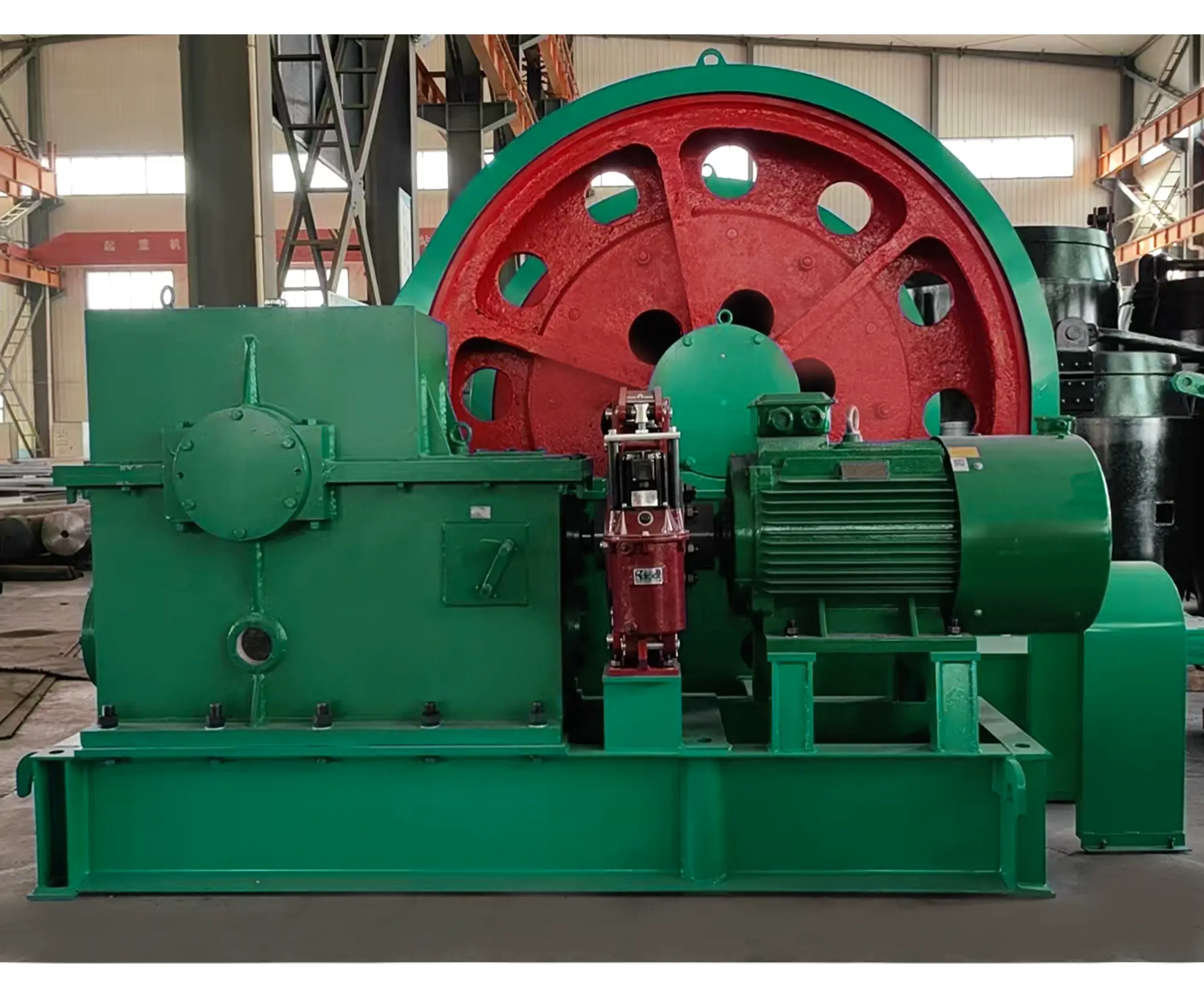

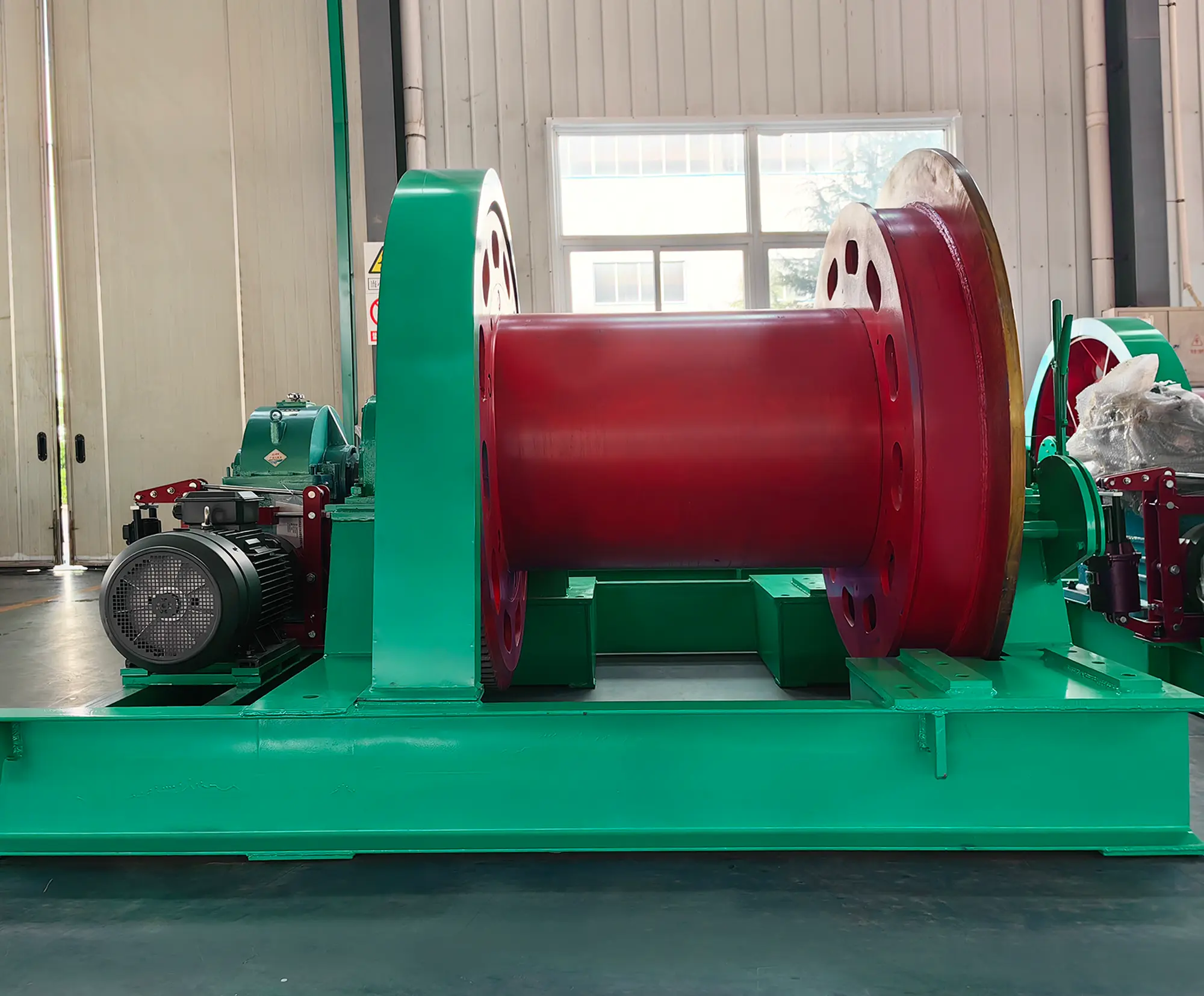

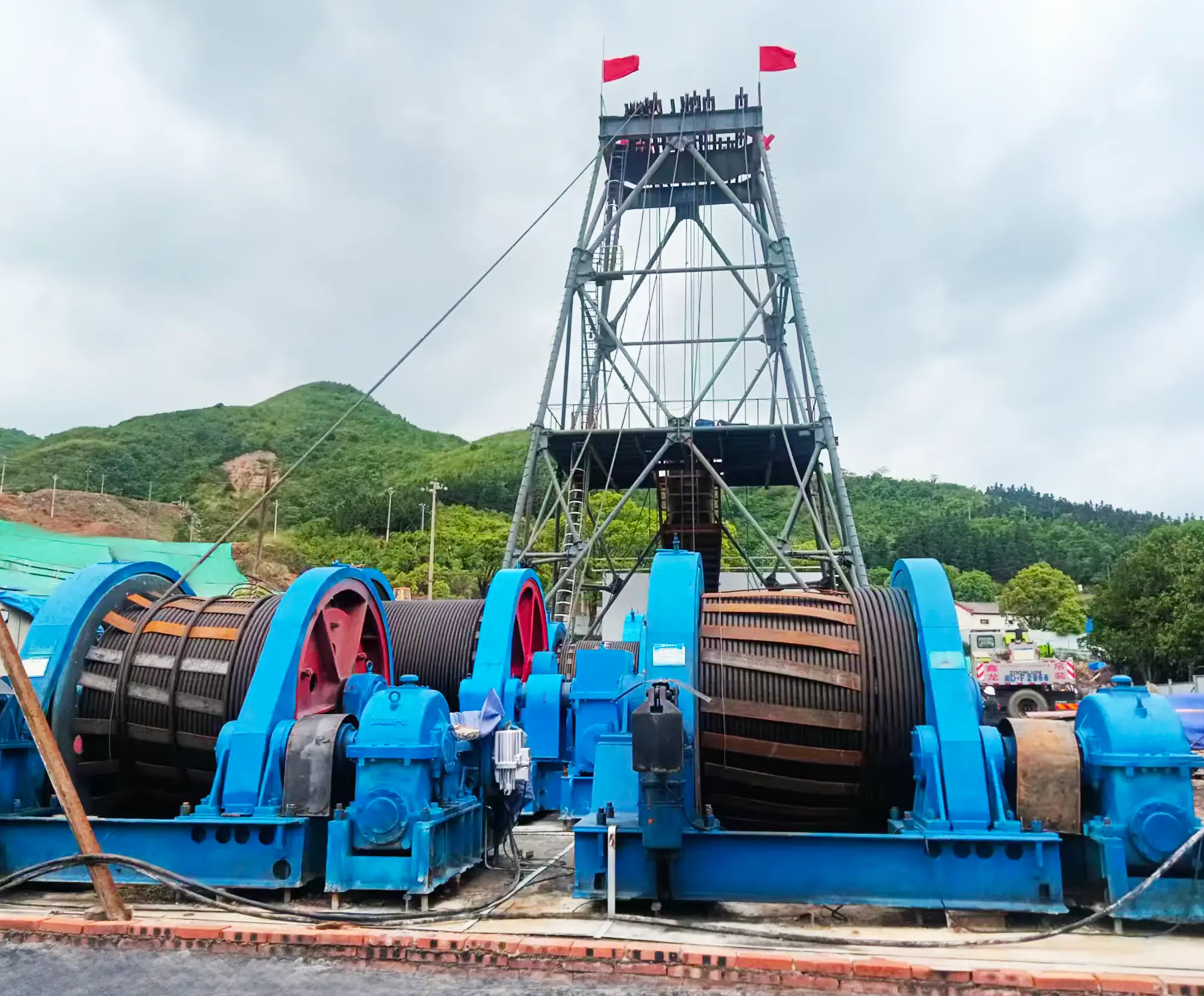

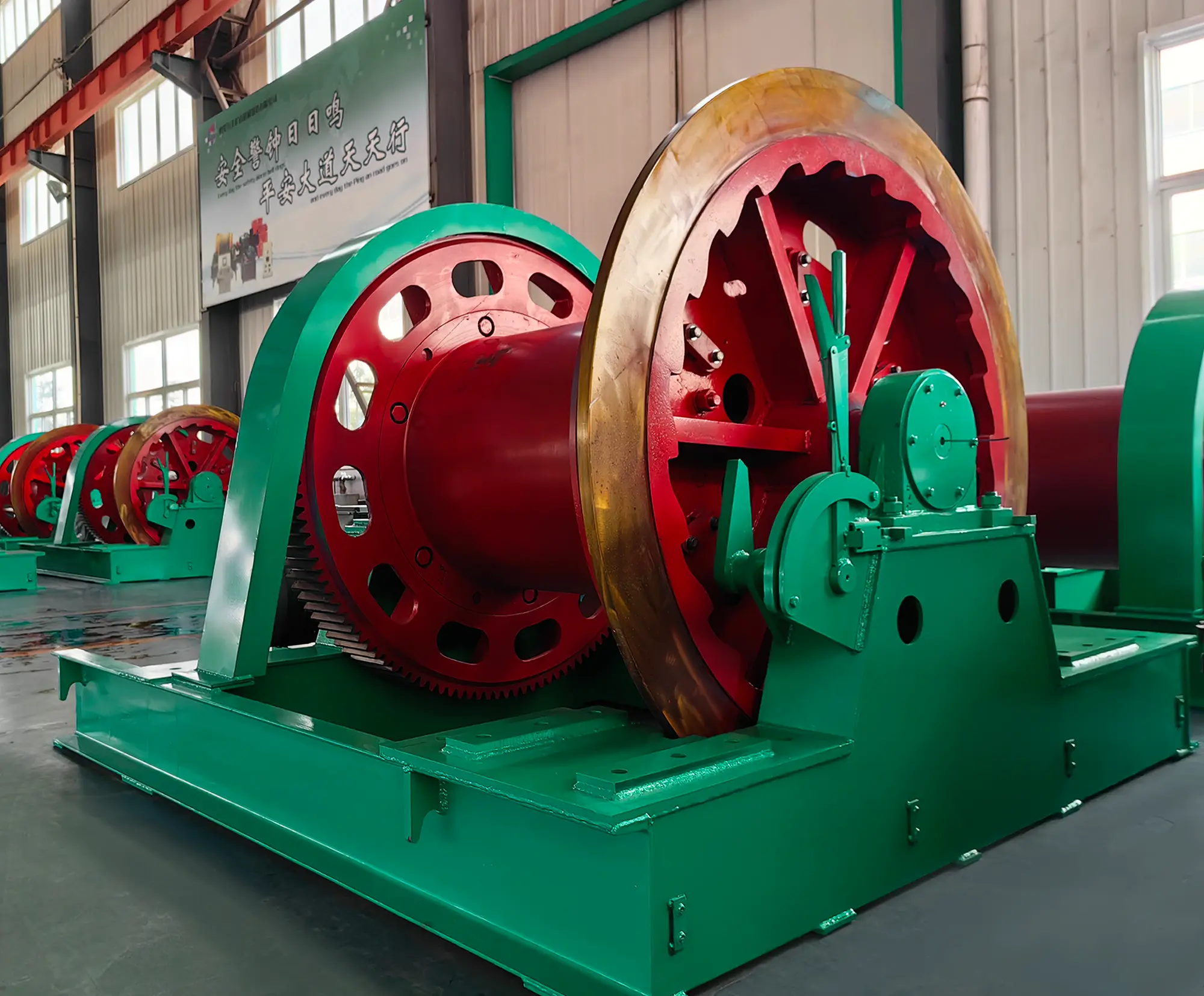

JZ Shaft sinking winches are mainly used for suspending hoisting drums, water pumps, water pipes, grouting pipes, air ducts and other tunneling equipment, as well as tensioning guide ropes during the shaft sinking of vertical shafts in coal mines, metal mines and non - metal mines. The winches are also used for replacing the tail ropes connecting the two cages of the hoist; they are most suitable for replacing flat ropes and can also be used as vertical shaft winches, with the same performance as vertical shaft winches.
| Model | Steel wire most greatly static tensity KN | Drum capacity m | Steel wire fast speed m/s | Steel wire slow speed m/s | Steel wire diameter mm | Motor power KW | Motor voltage V | Machine diamention | Total weight KG |
| mm | |||||||||
| JZA-5/1000 | 50 | 1000 | 0.19 | 0.095 | 23 | 22 | 380 | 1400*600*150 | 3700 |
| JZA-10/1500 | 100 | 1500 | 0.32 | 0.16 | 32 | 37 | 380 | 1400*600*150 | 7200 |
| JZ-5/400 | 50 | 400 | 0.11 | 0.058 | 26 | 11 | 380 | 1400*600*150 | 2100 |
| JZ-10/800 | 100 | 800 | 0.142 | 0.092 | 32 | 22 | 380 | 1400*600*150 | 5300 |
| JZ-16/1300 | 160 | 1000 | 0.1 | 0.05 | 40 | 30 | 380 | 11300 | |
| JZ-16/1300P | 160 | 1000 | 0.1 | 0.05 | 40 | 30 | 380 | 1400*600*150 | |
| JZ-25/1300 | 250 | 1050 | 0.08 | 0.04 | 52 | 45 | 380 | 2000*1000*150 | 14550 |
| JZ-25/1300P | 250 | 1050 | 0.08 | 0.04 | 52 | 45 | 380 | 2000*1000*150 | |
| JZ-40/1800 | 400 | 1250 | 0.091 | 0.043 | 60 | 75 | 380 | 2000*1000*150 | |
| JZ-40/1800P | 400 | 1250 | 0.091 | 0.043 | 60 | 75 | 380 | 2000*1000*150 | 26000 |
| 2JZ-16/1300P | 2x160 | 1000 | 0.1 | 0.05 | 40 | 55 | 380 | 1400*600*150 | |
| 2JZ-25/1300P | 2x250 | 1050 | 0.08 | 0.04 | 52 | 90 | 380 | 2000*1000*150 | 27600 |
